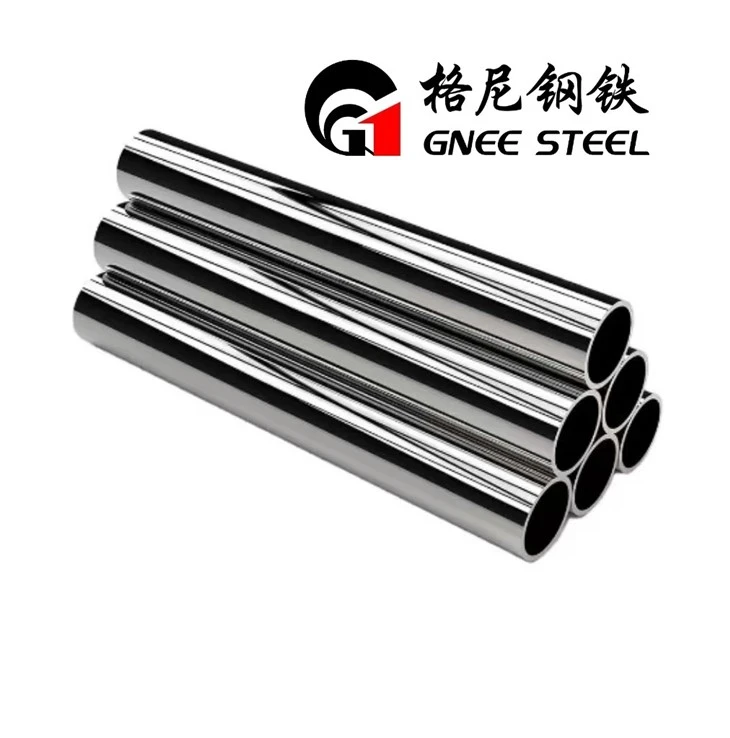

Incoloy Alloy 903 Cov kav dej

INCOLOY alloy 903(UNS N19903) yog lub hnub nyoog muaj zog nickel-hlau-cobalt alloy uas nws cov yam ntxwv zoo yog qhov tsis tshua muaj coefficient ntawm thermal expansion, ib qho kev hloov pauv tsis tu ncua ntawm elasticity, thiab lub zog siab.

Cov yam ntxwv ntawm cov hlau ua rau nws yog ib tus neeg sib tw zoo tshaj plaws rau kev siv xws li foob pob hluav taws-lub cav thrust chambers, chav-turbine bolts, springs, gage blocks, thiab khoom siv phom.

Mechanical Properties

INCOLOY alloy 903 muaj cov khoom siv kho tshuab siab ntawm chav tsev kub thiab khaws nws lub zog ntau txog li 1200 degree F (650 degree). Raws li tau hais los ntawm kev cuam tshuam lub zog, tsis muaj cov txheej txheem deleterious nyob hauv cov hlau. Txhua yam khoom raug tshaj tawm rau cov khoom siv hnub nyoog-hardened. Kev nyuaj siab-rupture zog ntawm cov hlau yog tswj los ntawm thermomechanical ua. Cov kev ntxhov siab los tsim kev puas tsuaj hauv 100 h ntawm cov khoom siv tawv tawv ntawm 1200 degree F (650 degree) yog 85 ksi (586 MPa). Chav-kub dav hlau strain fracture toughness (KIC) ntawm agehardened alloy 903 yog 100.6 ksi • hauv (111.36 MPa • m) (qhov nruab nrab ntawm peb qhov kev xeem).

Corrosion Resistance

Kev ntsuas tau ua rau 500 h ntawm 1000 degree F (540 degree), 1100 degree F (595 degree), thiab 1200 degree F (650 degree). Cov qauv raug hloov pauv mus rau qhov ntsuas kub rau 15 feeb thiab txias hauv huab cua rau 5 feeb. Vim tias alloy 903 tsis muaj chromium, oxidation kuj yuav dhau los ua kev txiav txim siab rau qee qhov kev siv kub. Hauv cov xwm txheej zoo li no, cov txheej txheem tiv thaiv yuav xav tau.

FAQ

Q1: Peb tuaj yeem tau txais cov qauv li cas?

A1: Cov qauv dawb muaj rau koj kuaj thiab kuaj.Tab sis koj yuav tsum tau them tus nqi thauj khoom.

Q2: Koj puas tuaj yeem muab daim ntawv pov thawj Mill Test?

A2: Yog! Mill Test Certificate yuav muab nrog cov khoom.

Q3: Cov ntaub ntawv ntim khoom?

A3: Ntim 25 Tons ib 20 GP ntoo thawv thawv.

20ft GP: 5898mm (Length) x 2352mm (dav) x 2393mm (siab)

40ft GP: 12032mm (Length) x 2352mm (dav) x 2393mm (siab)

40ft HC: 12032mm (Lengh) x 2352mm (Width) x 2698mm (siab)
