Cold Rolled Non Grain Oriented Silicon Steel Chev

Silicon steel, tseem hu ua hluav taws xob hlau, lamination steel, los yog transformer steel, yog ib qho ferritic alloy ntawm hlau thiab silicon uas muaj cov khoom sib nqus, uas yog siv dav hauv kev ua cov cores ntawm cov motors thiab transformers.

Muaj lus nug? GNEE cov neeg muag khoom muaj nyob rau hauv kev sib tham tam sim no

Xa E-mail:info@gneestainless.com

Tel:+8615824687445

Xa kev nug Tsham tam sim no

Hauj lwm lawm

Cold rolled non grain oriented silicon steel coil yog cov khoom siv zoo tshaj plaws ntawm kev ua hluav taws xob hauv kev lag luam hauv tsev, zoo punchability lav lub siab lamination coefficient.GNEEnruab nrog slitting thiab qhib punching kab, tuaj yeem muab kev pabcuam ntxiv.

Silicon steel ---- High Efficient Series

Pkabseries	Main specification (mm)	Nta
High efficiency series	{0}.35mm 0.50mm	Txo cov tub ntxhais poob thiab siab dua magnetic induction dua li cov khoom concentional

Cold Rolled Non Grain Oriented Electrical Steel Coil

Cold Rolled Non Grain Oriented Silicon Steel Coil

Qhov zoo ntawm silicon steel:

1. Tsawg hlau poob

2. siab sib nqus induction

3. uniform thickness

4. zoo punchability

5. me me thickness sib txawv

6. ruaj khov ua haujlwm

7. siab lamination coefficient

8. zoo heev vuam kev ua tau zoo

9. zoo corrosion kuj

10. zoo freon kuj

Tus nqi ntawm Electromagnetic Property -High npaum series ntawm silicon steel (Rau siv)

Qib	Nominal Thickness (hli)	Theoretical ntom ntom (kg / dm³)	Core poob (W / kg)	Sib nqus induction (T)
Qib	Nominal Thickness (hli)	Theoretical ntom ntom (kg / dm³)	P_15/50	B₅₀
35 HWV 250	0.35	7.65	2.40	1.69
50 HWV 470	0.50	7.70	3.05	1.72
50 AWV 470	0.50	7.75	3.15	1.73
50 AWV 600	0.50	7.75	3.60	1.74
50 HWV 800	0.50	7.80	4.50	1.76
50 AWV 1300	0.50	7.85	5.60	1.78

Nco tseg:

a.Qhov ntsuas saum toj no yog raws li GB/T2521.1-2016.

b.Tus naj npawb ntawm cov qauv ntsuas transverse thiab ntsug yog tib yam.

c.Cov khoom sib nqus ntawm kev ntxhov siab nyem annealing khoom tsuas yog rau kev sim ntawm 750 degree nrog 2 teev annealing.

d.P15/50 yog qhov poob nrog 1.5T thiab 50Hz. P10/400 yog cov tub ntxhais poob nrog 1.0T thiab 400Hz

e.B50 yog qhov sib nqus induction nrog 5000A / m.

Non Grain Oriented Silicon Steel Coil Daim ntawv thov

Txias Rolled TsisGrain Oriented Hluav Taws Xob Hlau(crngo steel) paub txog nws cov permeability siab thiab qis qis ntawm cov tub ntxhais poob, uas ua rau nws muaj txiaj ntsig zoo hauv kev tsim, kev faib tawm, thiab kev siv hluav taws xob, xws li cov motors me me mus rau loj, cov khoom siv hauv tsev motors, cores ntawm transformers, thiab lub tshuab hluav taws xob. khoom siv, thiab lwm yam.

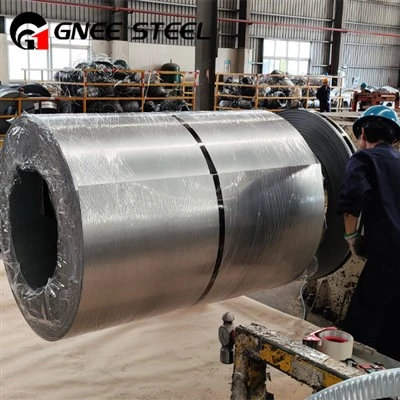

CRNGO Hluav Taws Xob Hlau Coil Factory

CRNGO Silicon Steel Coil
